Products are classified as Transformer Accessories, Insulation Materials, Pressboard Parts & Laminated Wood Products, Porcelain Bushings, Paper Covered/Enamelled Copper & Aluminium Wires, Cable Gland, Cable Lugs, Crepe Paper Products, Plug-In Bushings/Connectors, Breathers, Thermometers, Stainless Steel Arc Weld Stud, Silicone Oil for Transformers, Mineral Oil for Transformers, Transformer Fans and many more.

Products are classified as Aluminium Foils/Coils & Sheets, Cold Rolled Steel Coils & Sheets, Electrical Steel Coils (CRGO – Grained Orientated), Cut Cores, Copper Foils/Coils & Sheets, Electro-galvanized Steel Sheets (Phosphated/Chromated) and many more.

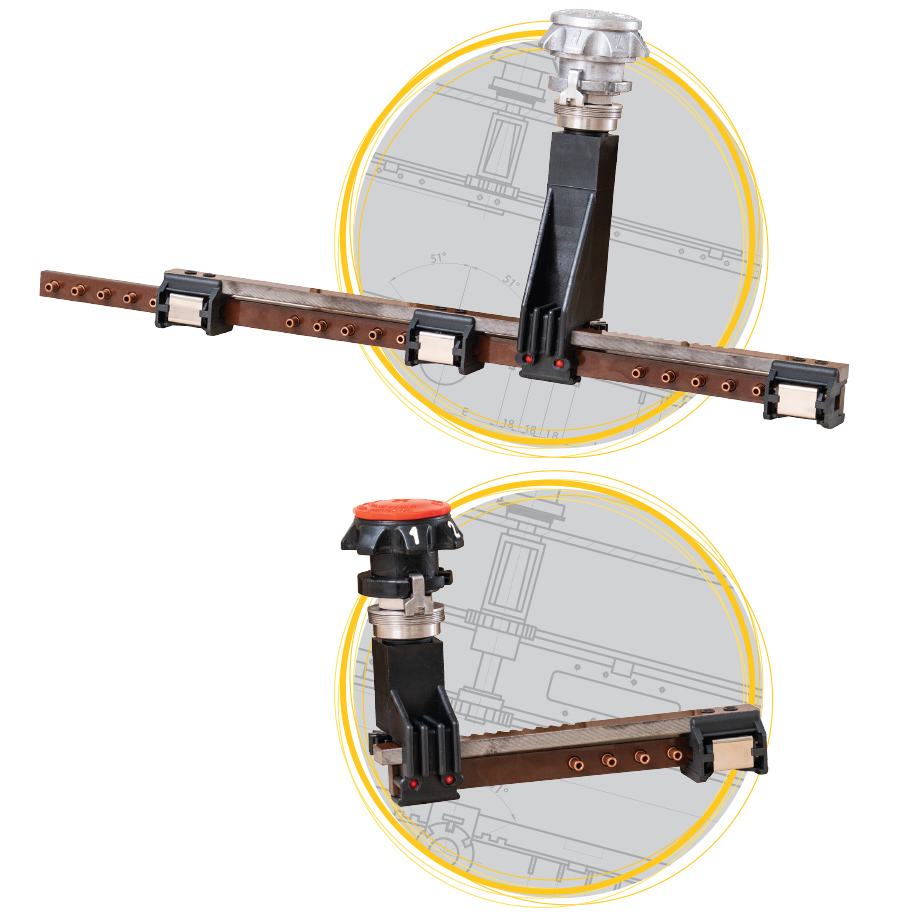

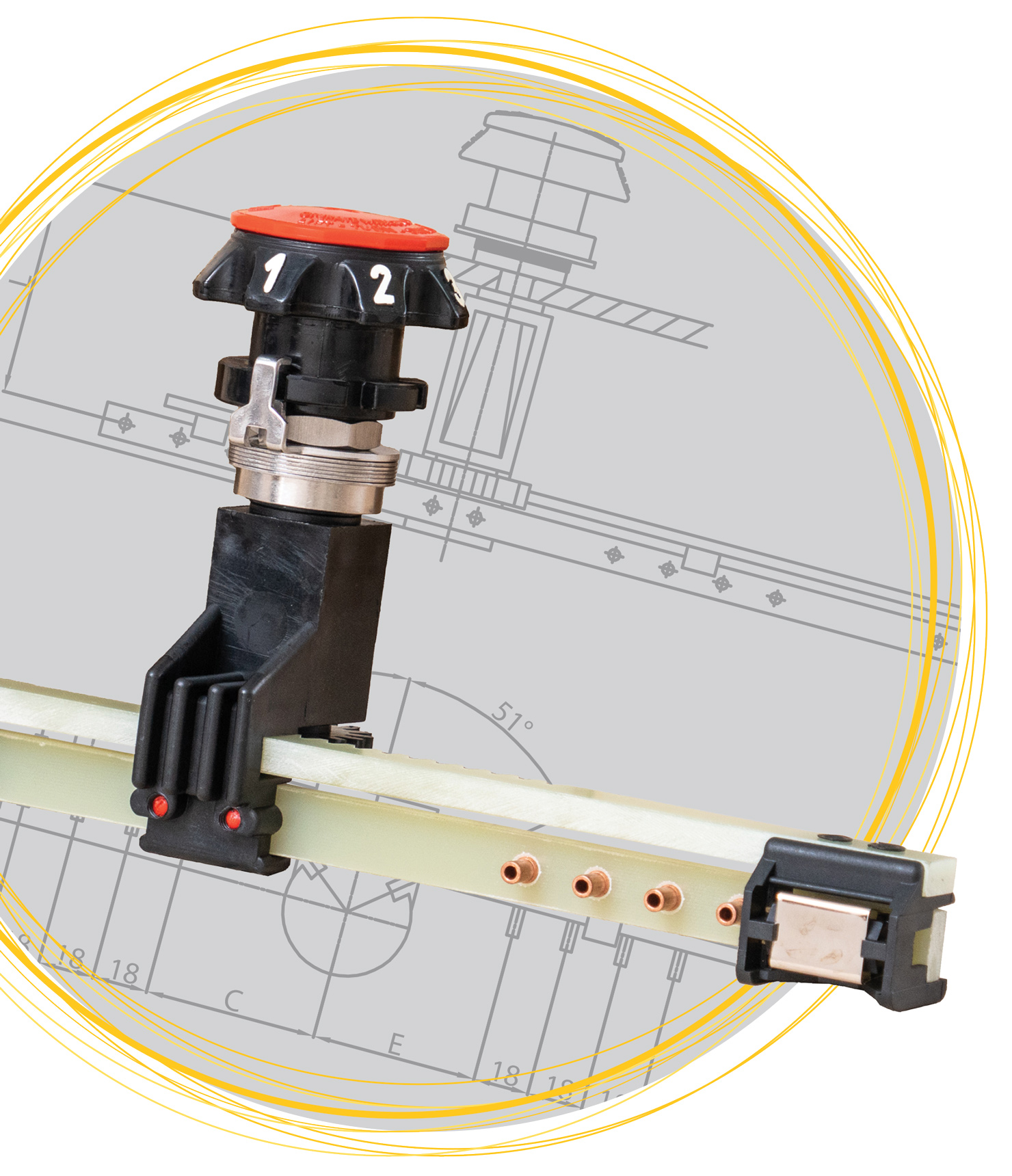

1.TAP CHANGERS

ELETTRO MAULE SNC has a wide experience in the construction of off-load tap changers for distribution transformer from 10A up to 1200A, for operating voltage 20 up to 72kV. A precise selection of materials, the accurate process joined to the simplicity of the apparatus are decisive factors of the full safety guaranteed for our tap changers. Our current production include standard versions as well as customs-tailored types based on specific drawings. All this versions enable to choose the most fit tap changer for any demand. For peculiar installation or needs and for weatherproof protection following optional are available:

Control set with aluminium oil tight shaft;

Stainless steel Protective cap;

Tin/silver-plated contacts and connecting terminal;

Manual/Motorized remote control.

Our tap changers have to undergo severe tests for mechanical characteristics and constant current transmission. PROTOTYPES were submitted by CESI in Milan, to the following tests:

Temperature rise of the contacts;

Short-circuit current test;

Lightning Impulse Test, Power Frequency Test.

These tests were successful as shown in the CESI reports.

2.TRANSFORMER ACCESSORIES AND EQUIPMENTS

BUSHINGS WITH INSULATORS FOR TRANSFORMERS
1kV 250A - 1kV 630A DIN 42530

BUSHINGS WITH INSULATORS FOR TRANSFORMERS
1kV/1000A - 2000A - 3150A DIN 42530

BUSHINGS WITH INSULATORS FOR TRANSFORMERS
1kV 250A - 1kV 630A DIN 42530/O-Ring Support

BUSHINGS WITH INSULATORS FOR TRANSFORMERS/O-Ring Support
1kV/1000A - 2000A - 3150A DIN 42530

BUSHINGS WITH INSULATORS FOR TRANSFORMERS
3.6kV 250A - 3.6kV 630A DIN 42539

BUSHINGS WITH INSULATORS FOR TRANSFORMERS
3.6kV 1000A - 3.6kV 4500A DIN 42539

BUSHINGS WITH INSULATORS FOR TRANSFORMERS
10-20-30kV 250A DIN 42531

BUSHINGS WITH INSULATORS FOR TRANSFORMERS
10-20-30kV 630A DIN 42532

BUSHINGS WITH INSULATORS FOR TRANSFORMERS
250A - 630A EN 50386

BUSHINGS WITH INSULATORS FOR TRANSFORMERS
1000A-2000A-3150A EN 50386

PLUG IN TYPE RESIN BUSHINGS EN 50181

CAST RESIN MONOBLOCK 2100A - BS 2562 - EN 50336

OIL DRAINING DEVICE DIN 42551A

OIL LEVEL INDICATOR VERTICAL R 1"

PRESSURE SAFETY VALVE R 1"

TRANSFORMER WHEEL DIN 42561

MOISTURE HOLDERS DIN 42567 FORM C

CONNECTING PLATE WITH 8 CONNECTOR FOR CURRENT TRANSFORMERS

GASKETS AND O-RINGS

3.COPPER AND ALUMINUM CONDUCTORS

BARE RECTANGULAR COPPER WIRE /STRIP

ENAMELLED RECTANGULAR COPPER WIRE

FIBRE GLASS COV. RECT. ALUMINIUM WIRE

PAPER COV RECTANGULAR COPPER WIRE

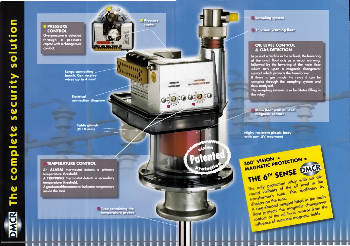

4.DMCR

DMCR- DETECTION, MEASUREMENT & CONTROL RELAY

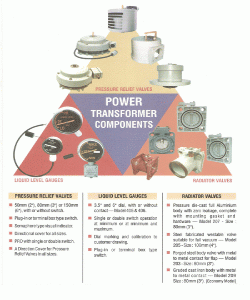

5.LIQUID LEVEL GAUGES

DMCR- DETECTION, MEASUREMENT & CONTROL RELAY

OTHER PRODUCTS

1.CABLE GLANDS

2.CONNECTORS AND CONDUCTORS

AZT-15(24)/250 Elbow Connectors

AZC-15(24)/250 Straight Connector

AJM-15(24)/630 Insulation Cap

Insulated Copper Conductors

3.COMPRESSED WOOD

4.COILS, SHEETS, STRIPS AND WIRE TERMINALS

5.COLD ROLLED COILS

JIS G3141
THICKNESS:0.30MM, 0.40MM &0.50MM(SPCC-SB)
THICKNESS:0.80MM,1.00MM & 2.00MM(SPCC-SD)

6.DDP

DIAMOND DOTTED PAPER

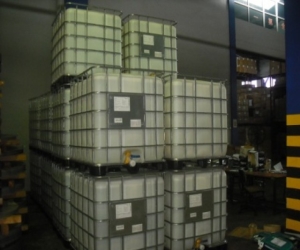

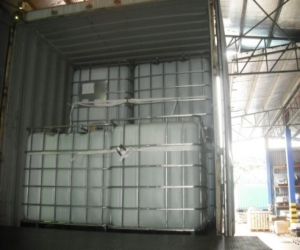

7.SILICONE DIELECTRIC FLUID / OIL

8.COOLING FAN (Tube Type) & (Guard Type)

EF6 -10X SERIES LOW NOISE COOLING FAN(TUBE TYPE)

EF6 -10X SERIES LOW NOISE COOLING FAN(TUBE TYPE)

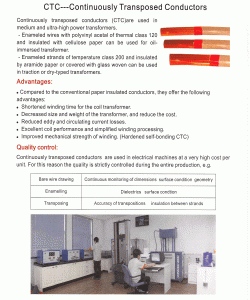

9.CTC
